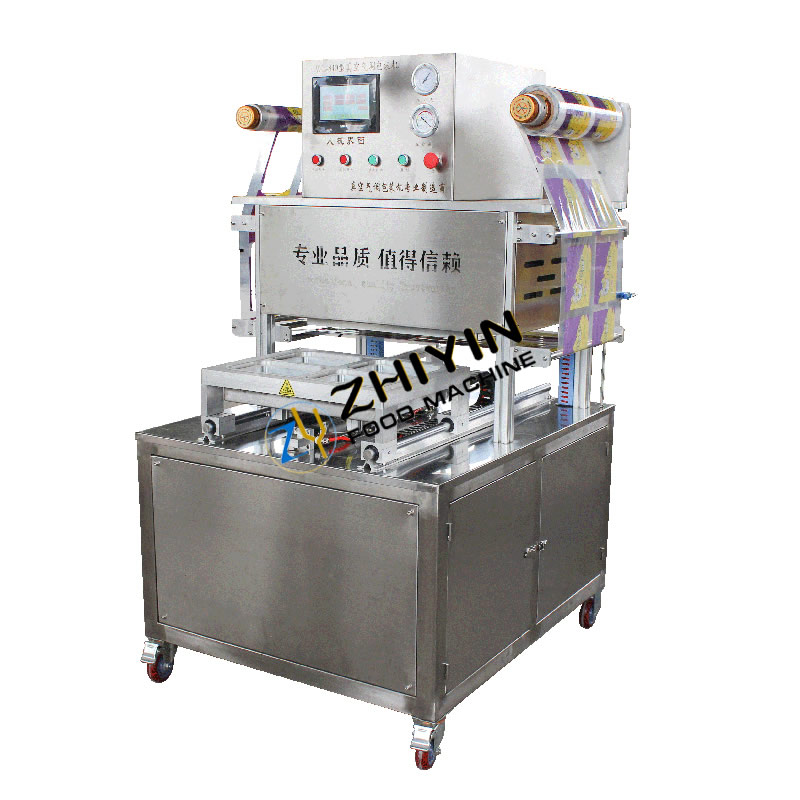

Double-station air-modified box packaging machine tmosphere packaging machine

Double-station air-modified box packaging machine tmosphere packaging machine
Артикул: set
¥102,657.00
Доставить в
*
*
Спопсоб доставки
Название
Ориентировочная дата доставки
Цена
Нет способов доставки

One Out Four Air Modified Box Packaging Machine Fruit Meat Vacuum Packing Machine

Baokang vacuum packaging machine is a kind of vacuum packaging machine for food boxes.

1. Flexible packaging and high efficiency.

2, especially suitable for fragile or deformed products packaging.

3, vacuum sealing, moisture-proof, anti-oxidation, dustproof, anti-loose parts, can effectively protect product quality, prolong product life.

4. Low packaging cost.

Using low viscosity composite film, the material is placed on the tray or film of the lower template, under the vacuum state, the heat generated by the heating plate is sent to the vacuum room through the exhaust outlet, and the low viscosity composite film is instantly heated to the whole body, compounded together, to achieve the effect of vacuum packaging.

The machine is widely used for packing food, hardware, measuring tools, stationery, toys, knives, tableware, general merchandise, decorative buckle, handicrafts, tourist souvenirs, medical equipment, auto parts, electrical components and other products.

Automatic film sealing box packing machine

NameData Parameter
Product nameAir baling machine
Equipment size: 1100*1000*1600mm
Machine weight: 260kg
Total power:2kW/H
Machine materialAluminum alloy, 304 stainless steel
Quick-freeze: 3-4 cycles/min
Production: 360-480 boxes/hour
Control system: PLC control
Gas replacement rate:≥99%
Support for customSpecific parameters can be customized as required



NameData parameter
Equipment dimensions1300 (length) * 1000 width) * 1650 height)mm
Equipment weight260kg
Voltage380/220V
Total power2.8KW/Hour
The actual working size of the studioCustomized according to the customer's product box
Theoretical speed3-4 cycles/Minute
Theoretical output720-960Boxes/Hour
Machine materialAluminum alloy, 304 stainless steel
Control SystemPLC control
Lock gasNitrogen, oxygen, carbon dioxide
Gas replacement rate≥99.9%
Storage method0-4℃ refrigerated
Production cycle15 days
Vacuum pump20

Double-station air-modified box packaging machine tmosphere packaging machine

NameData parameter
Equipment dimensions1600 (length) * 1000 width) * 1650 height)mm
Equipment weight260kg
voltage380/220V
Total power2.8KW/H
The actual working size of the studioCustomized according to the customer's product box
Theoretical speed3-4 cycles/Minute
Theoretical output720-960 Boxes/Hour
Machine materialAluminum alloy, 304 stainless steel,
Electrical appliancesZhengtai
Control SystemPLC control
Pneumatic ComponentsAirTAC Taiwan
Lock gasNitrogen, oxygen, carbon dioxide
Gas replacement rate≥99.9%
Storage method0-4℃ refrigerated
Theoretical preservation period≦7 days
Production cycle15 days
Vacuum pump20

The vacuum packing machine uses its vacuum chamber to vacuum the package, and then fills inert gas to achieve the purpose of anti-corrosion and quality assurance. It can effectively prevent the oxidation of lipid products and the reproduction of aerobic bacteria caused by the article corruption and deterioration, to achieve the quality, fresh, taste, color preservation function of the storage period, at the same time for some soft goods, after vacuum packaging, reduce the packaging volume, easy to transport and storage. This machine is specially designed for packing products in the high water content, controlled by the Japanese lines, absorb foreign advanced technology industry experience, its electrical appliances microcomputer controller to control all the way, the frame body USES the international standard food with 304 stainless steel plate, high strength, not easy damaged, its unique tilt table design, can guarantee the product in water is not lost, Thus, the water-bearing vacuum packaging of products is easier to operate.

What is modified atmosphere packaging?
Modified atmosphere packaging machine is a new packaging equipment for food and fruits and vegetables, which is developed on the basis of vacuum packaging machine and nitrogen filling packaging machine. Its biggest feature is to solve the vacuum packaging and high temperature sterilization of food taste damage, nitrogen packaging requirements for aseptic packaging and large investment lack. Through compound atmosphere packaging, the original taste and taste of food can be ensured, and the original flavor and appearance of food can be guaranteed.

Automatic film sealing box packing machine

Automatic film sealing box packing machine

Composite modified atmosphere packaging (MAP) preservation principle

1. Composite modified atmosphere packaging which is also called gas replacement packaging, packaging (i.e. ModifiedAtmospherePacking) is called on the international MAP. Compound gas switch installed principle is to use compound fresh gas according to the characteristics of food (2-4 kinds of gas mixing ratio), to the replacement of the air in the box/bag, the external environment of change box/bag food, restrain the growth of the bacteria (microbial), reducing the speed of the metabolism of fresh fruits and vegetables, so as to extend the freshness and shelf life of food.

2. The modified atmosphere fresh-keeping gas is generally composed of carbon dioxide (CO2), nitrogen (N2), oxygen (O2) and a small amount of special gases. CO2 gas can inhibit the growth and reproduction of most spoilage bacteria and mold, and is the main antibacterial component in the preservation gas. O2 can inhibit the growth of most anaerobic bacteria, maintain the color of fresh meat, and maintain the aerobic respiration and freshness of fresh fruits and vegetables. N2 is an inert gas and has no effect on food. As a filling gas, it is composed of a composite fresh-keeping gas with CO2, O2 and special gases. The composition and proportion of fresh-keeping gas are also different for different foods and fruits and vegetables.

Application of modified atmosphere fresh-keeping packaging in fresh meat:
Fresh meat packaging can be divided into two categories: one is pig. Beef, mutton, meat is red, also known as red meat packaging, requirements both to maintain the red color of fresh meat and preservative; Another kind of chicken and duck and other poultry meat, can be called white meat packaging, only requires preservative preservation. Red meat contains bright red oxygenated myoglobin, which can be kept bright red in high oxygen environment, and reduced to lilac myoglobin in low oxygen environment. Traditional vacuum-packed red meat, due to lack of oxygen meat is lilac, consumers will be mistaken for not fresh and affect sales. The protective gas of red meat modified atmosphere fresh-keeping packaging is composed of O2 and CO2. The concentration of O2 should exceed 60% to maintain the red color of meat, and the minimum concentration of CO2 should not be less than 25% to effectively inhibit the reproduction of bacteria. The content of myoglobin of all kinds of red meat is different, and the red degree of meat is different. For example, beef is darker than pork. Therefore, the oxygen concentration of different red meat in modified atmosphere packaging needs to be adjusted to achieve the effect of maintaining color and anticorrosion. The composition of protective gas in the packaging of pork modified atmosphere preservation is usually 60%-70%O2 and 40%-30% CO2, and the shelf life of 0-4 is usually 7-10 days. The purpose of the modified atmosphere fresh-keeping packaging of poultry meat is to prevent corrosion. The protective gas is composed of CO2 and N2. The shelf life of the mixed gas of 50%-70% CO2 and 50%-30%N2 for poultry meat is about 14 days in 0-4.

Ternary gas mixing:
Used for meat, fruits, vegetables and grain preservation of mixed gas, more varieties and specifications: the mixed gas is generally composed of carbon dioxide, nitrogen and oxygen. Carbon dioxide has no bactericidal effect on bacteria, but it can inhibit the development of filamentous bacteria (mold) and gas bacteria. Nitrogen has the function of antioxidant and preventing bacterial development; Oxygen can make vitamin and adipose oxidation, the tissue of fresh food and fish shellfish is to have activity, it consumes oxygen ceaselessly, in anaerobic state, the myoglobin of muscle pigment is reduced to show dark color, namely beef, fish is in the absence of oxygen condition, cannot have fresh-keeping effect. A small amount of ethylene oxide can also be added to the fresh-keeping mixture to enhance the killing ability of bacteria.



Automatic film sealing box packing machineAutomatic film sealing box packing machine
