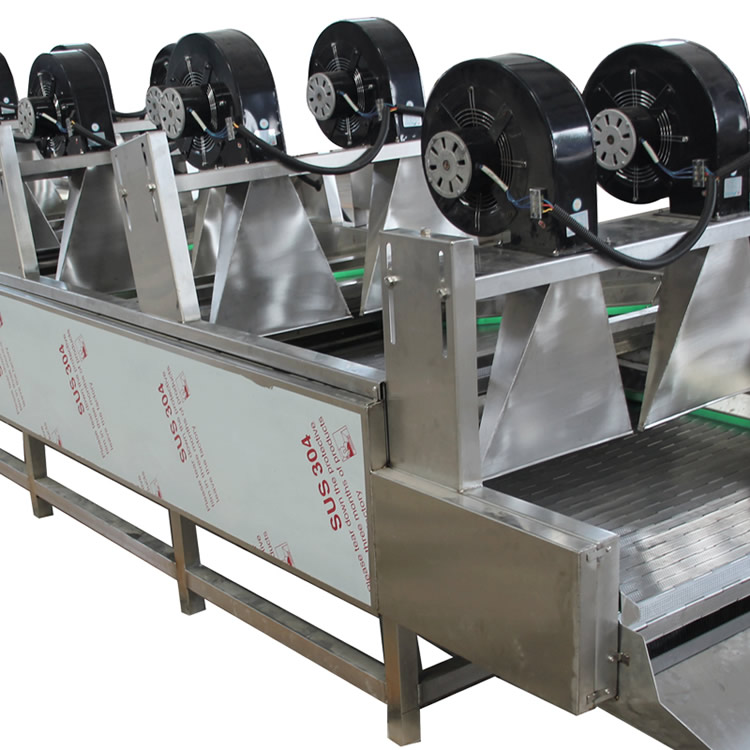

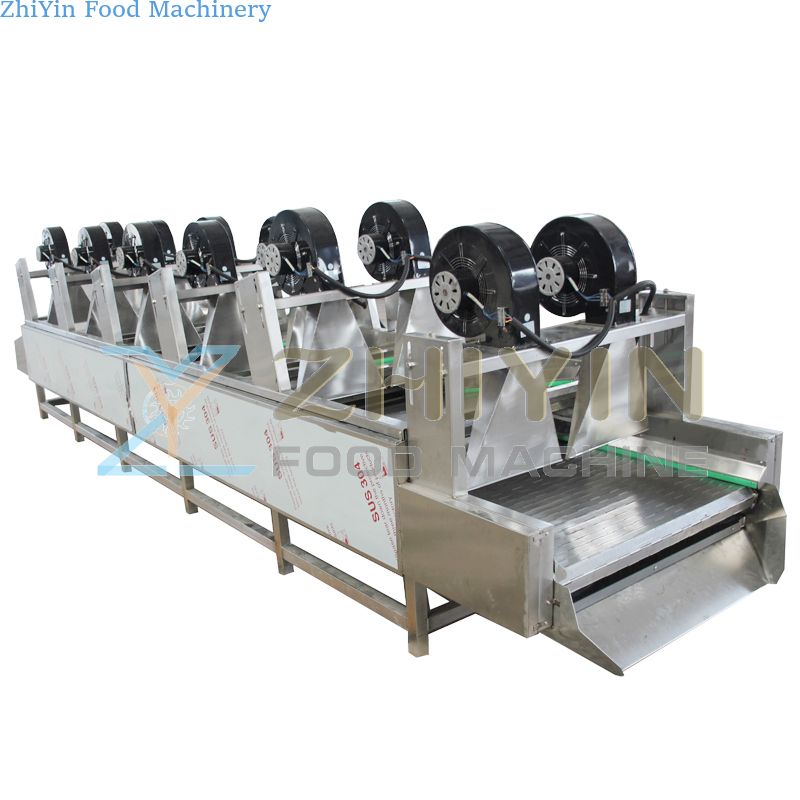

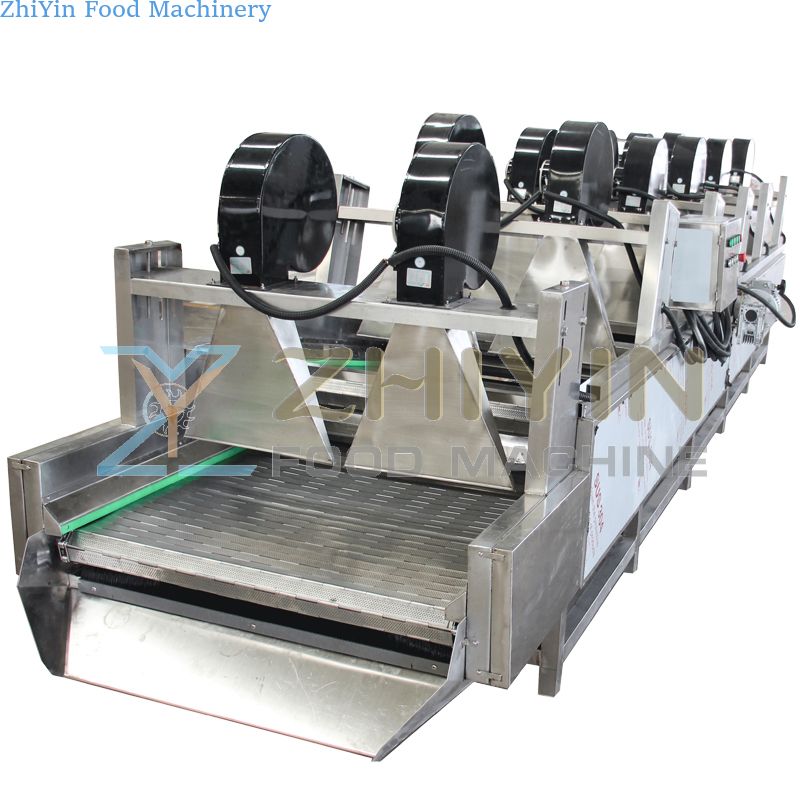

Industrial pineapple watermelon avocado strawberry air drying line vegetable and fruit air drying machine

2.fan: adopt large air volume as fan, the distance between each group fan and fan is 1 m, air drying efficiency is high, fan height can be adjusted freely according to different product.

3.Stainless steel mesh cover: in order to prevent the product from being blown off in the air-drying, there is a punched
stainless steel mesh cover in the space of the equipment. The product will only flip inside and won't be blown out The shield can be removed for easy cleaning.
4.transmission system: mainly consists of transmission chain, transmission sprocket, bearing seat, driving shaft, driven shaft and mesh belt. The mesh belt is driven by each driven shaft independently, the net belt itself has no pull force, the service life of the net belt is increased, and the service life of the net belt is improved, which is convenient for disassembly and maintenance. The net belt all has the brush to protect the edge, the protection product is not easy to be squeezed, the damage, inview of the product dead corner too many, needs to carry on the net belt to flip many times, this may achieve the better air drying effect; each time flips the chain independent drive, reduces the chain pull force, Extend service life.
5.electronic control system The control system is integrated with the equipment with frequency conversion reducer, speed and slow adjustable, the reducer drives the transmission chain operation, which is brought to the net belt to run.
6.the equipment outlet end with screen, feed end with stainless steel baffle, prevent material from running out, the outlet can better gather the product.
