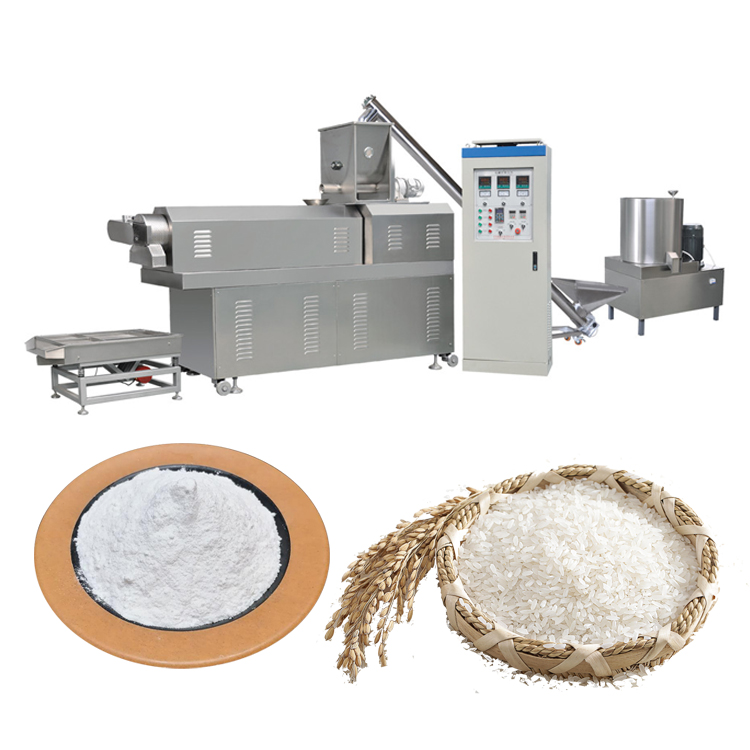

Automatic Instant Rice Artificial Rice Nutritional rice extruder making machine production line

1. Control system: ordinary control cabinet, intelligent control cabinet.  2. Power module: conventional power module, heavy-duty power module, high-torque power module.  3. Feeding system: single screw feeding, twin screw feeding, intelligent metering feeding.  4. Barrel module: integral barrel, wear-resistant composite barrel.  5. Temperature control system: electric temperature control, steam temperature control, mold temperature and machine temperature.

Automatic Instant Rice Artificial Rice Nutritional rice extruder making machine production line

The twin-screw extruder is composed of two co-rotating high-torque screws that mesh with each other. Due to the wide design range of the screw and barrel, various screw profiles and process functions can be set according to the process requirements, so the twin-screw extruder can be High-strength flexibility ensures transportation, compression, mixing, cooking, shearing, heating, cooling, pumping, molding, etc.
The purpose of extrusion processing is to physically and chemically convert the viscous polymer medium through precise control of processing conditions , And produce high-quality structured products.

Automatic Instant Rice Artificial Rice Nutritional rice extruder making machine production line:

Model
ZYCP65
ZYCP70
ZYCP75
ZYCP85
Installed Power
130kw
160kw
256kw
205kw
Capacity
100-120kg/hour
200-260kg/hour
200-350kg/hour
300-500kg/hour
Dimension
39×1.5×2.5m
41×1.5×2.5m
52×1.5×2.6m
45×1.5×2.6m

Rice Extruder Twin-screw Extruder Nutrition Rice Extruder Machinery Automatic Instant Rice Artificial Rice Nutritional

Rice Extruder Twin-screw Extruder Nutrition Rice Extruder Machinery Automatic Instant Rice Artificial Rice Nutritional
NO.
Name
Dimensions
Power
Product usage
1
Mix machine
1260*800*1200mm
75kw
Used for mixing raw corn flour with a small amount of liquid.
2
Screw feeding machine
3100*590*2200mm
0.75kw
The mixed material is conveyed to the feed hopper of the extruder by a screw conveyor.
3
Twin screw extruder
5000*1200*1500mm
165kw
The twin-screw dry extruding extruder is used to extrude the mixed corn flour instantaneously and produce high expanded granules.
4
Vibrating screen
1530*820*790mm
0.55kw
Removal of debris after the formation of highly expanded particles.
5
Air pressure conveyor
1200*530*2500mm
1.1kw
The high compression particles are transported to the Tableting machine by air transport mode.
6
High temperature oven
8710*1490*1845mm
1.5kw
The corn flakes are puffed again at high temperature in the oven to achieve a more
7
Cooling line
5000*500*750mm
0.75kw
After spraying sugar on the cornflakes out of the dryer after cooling.

System optional configuration

1. Control system: ordinary control cabinet, intelligent control cabinet.
2. Power module: conventional power module, heavy-duty power module, high-torque power module.
3. Feeding system: single screw feeding, twin screw feeding, intelligent metering feeding.
4. Barrel module: integral barrel, wear-resistant composite barrel.
5. Temperature control system: electric temperature control, steam temperature control, mold temperature and machine temperature.

Rice Extruder Twin-screw Extruder Nutrition Rice Extruder Machinery Automatic Instant Rice Artificial Rice Nutritional -Can do other puffed food display:
Food extruder production line Nutritions rice instant powder food extruder exports Curing food rice powder making machine
