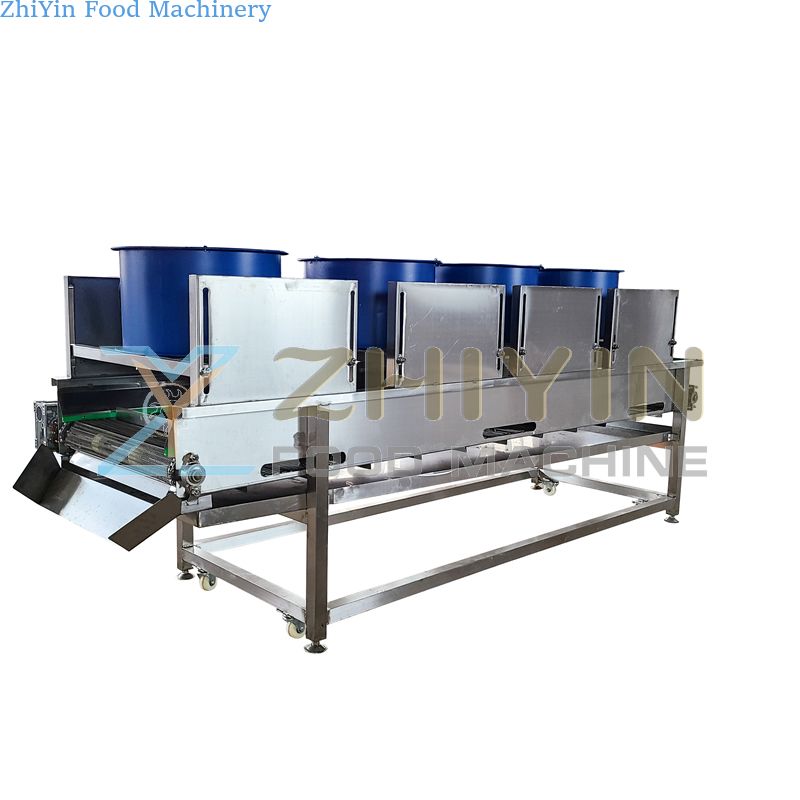

Automatic Fruit And Vegetable Air-drying And Draining Machine, Stainless Steel Material Flip-type Air Drying Machine

Machine mesh belt width: 600mm / 800mm / 1000mm /1200mm / customized width

It is suitable for pre-packing dryer with different types of single cigarette output.

The air volume can be controlled according to customer requirements to customize hot air ducts and cold air ducts

Automatic Fruit And Vegetable Air-drying And Draining Machine, Stainless Steel Material Flip-type Air Drying Machine

Marketing Type:New Product 2021
Warranty of core components:1 Year
Core Components:PLC, Motor
Type:Air Drying Machine
Power4.5kw
Voltage:220v/380v/customized
Dimension(L*W*H):3000*1200*1000mm
Name:vegetable fruit seafood washing drying machine,Blanching cooling machine
Production capacity500-800kg/h
Material:304 Stainless Steel
Related machine:Vegetable fruit washing drying machine

Automatic Fruit And Vegetable Air-drying And Draining Machine, Stainless Steel Material Flip-type Air Drying Machine

-It is suitable for pre-packing dryer with different types of single cigarette output.

Model
Size
Power
kw
Capacity
kg/h
Qty of fan
(piece)
Mesh belt width
mm
FG-300
3000*1250*1300
4.5
500-800
6
800
FG-400
4000*1250*1300
10.1
800-1200
8
800
FG-500
5000*1250*1300
13.6
1200-1500
10
800
FG-600
6000*1250*1300
16.6
1500-1800
12
800
FG-700
7000*1250*1300
18.6
1800-2000
14
800
FG-800
8000*1250*1300
20
2000-2500
16
800

Introduction-Automatic Fruit And Vegetable Air-drying And Draining Machine, Stainless Steel Material Flip-type Air Drying Machine

1. frame: the whole uses SUS304 stainless steel to make, conforms to the national food production safety standard.
2.fan: adopt large air volume as fan, the distance between each group fan and fan is 1 m, air drying efficiency is high, fan height can be adjusted freely according to different product.
3.transmission system: mainly consists of transmission chain, transmission sprocket, bearing seat, driving shaft, driven shaft and mesh belt. The mesh belt is driven by each driven shaft independently, the net belt itself has no pull force, the service life of the net belt is increased, and the service life of the net belt is improved, which is convenient for disassembly and maintenance. The net belt all has the brush to protect the edge, the protection product is not easy to be squeezed, the damage, inview of the product dead corner too many, needs to carry on the net belt to flip many times, this may achieve the better air drying effect; each time flips the chain independent drive, reduces the chain pull force, Extend service life.
4.electronic control system The control system is integrated with the equipment with frequency conversion reducer, speed and slow adjustable, the reducer drives the transmission chain operation, which is brought to the net belt to run.
5.the equipment outlet end with screen, feed end with stainless steel baffle, prevent material from running out, the outlet can better gather the product.

Automatic Fruit And Vegetable Air-drying And Draining Machine, Stainless Steel Material Flip-type Air Drying Machine-Features:
1.With big air volume centrifugal turbofan, and small sharp air outlet, enable quick drying
2.With SUS 304 mesh belt, mesh belt width could be 500-1000mm
3.Mesh speed adjustable by gearbox
4. The natural air dryer can be customized according to the output of a single cigarette, which is suitable for pre-packing and drying of different types of cigarettes.
5.Each unit of blowing fan can be controlled separately
6.Suitable for production line, continuously working
vegetable fruit washing and drying machine
Blowing fan
The air volume can be controlled according to customer requirements to customize hot air ducts and cold air ducts
vegetable air drying machine
Mesh belt
Mesh belt is made of 304 stainless steel, belt size can be customized according to customer needs
Vegetable air drying machine
Mesh belt motor
Reached a cooperation with Germany's Siemens company and adopted Siemens inverter motor
Vegetable air drying machine fruit dryer
Control box
All electrical components adopt Siemens, which greatly extends the service life of the distribution box

About US:
Zhengzhou ZhiYin industry co.,LTD.,have already been set food machinery design,processing,production as one of the industry and trade of the company.
Its product cases include potato chip production line,banana chip processing machine,snack food production machine,meat processing machine,industrial food frying line,vacuum frying machine,low temperature freezing production line,etc.
After years of development,it has formed a series of perfect systems for raw material supply,product development,process design,finished product inspection,production management,storage and transportation,and technical services.

Our machines can be customized and we have proven solutions.
The lead time of the production line is about 35 working days.
